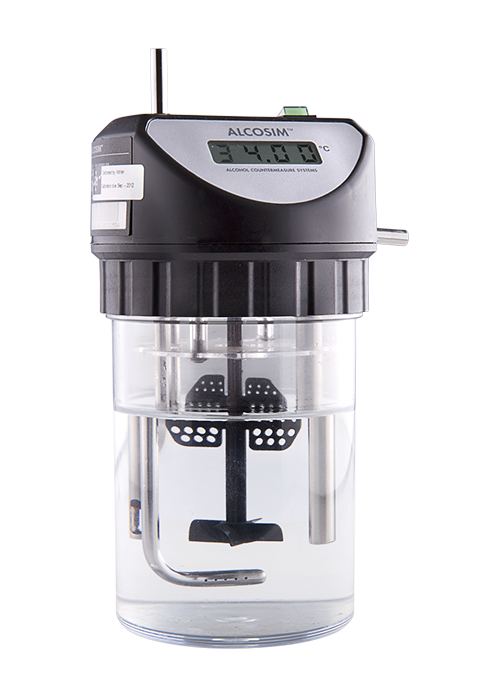

Breath alcohol simulator
ALCOSIM is the easy and accurate way to calibrate or check-calibrate breath‑alcohol testing instruments. Carefully maintaining an alcohol reference solution, ALCOSIM produces an air-alcohol sample of precise concentration, equivalent to the calibration set point of the breath alcohol-testing instrument.
Watch the video
How it works
Equipped with a reference thermometer, ALCOSIM maintains the standard reference solution, an ethyl-alcohol concentration, at mouth temperature (+34 °C ±0.05 °C) to simulate the density, composition and temperature of a human breath sample.
Easy to use
Once the green light indicates that ALCOSIM is at operating temperature, simply breathe into the inlet hose to produce an air-alcohol sample. The breath-alcohol testing instrument compares this sample to the value of the chosen reference solution.
Medical grade plastic and stainless steel provide chemical resistance and anti‑corrosion, while extensive internal sealing provides leak resistance. ALCOSIM is built for lifetime use.
|Time to ready
≺ 12 minutes
≺ 5 seconds
110 or 220 volt
